Fully Insulated Quick Connect Terminals, Female, PVC Insulated, 10-22 AWG Gauge Wire, Tin-Plated Brass

$11.25 - $16.55
(No reviews yet) Write a Review
↓ Headings for tabs. DO NOT CHANGE IN WYSIWYG

↑ End Headings for tabs
↓ Begin to insert your "Description" tab content here

Quick connect terminals are a type of wire terminal with a male or female quick connector on one end and a crimp connection at the other (allowing for quick, solderless connections). The tin-plated brass terminal base provides good electrical connectivity while the PVC insulation protects the connection against abrasion, chemicals, oils, fuels, and solvents. This is a fully-insulated version of the female quick connect terminal that provides a complete PVC covering of the connection.

↑ Stop "Description" content here
↓ Begin to insert your "Specifications" tab content here
  • Material: Tin-Plated Brass with PVC Insulation
  • Temperature Rating: 75°C (167°F)
  • Current Rating:
    • 10-12 AWG: 24 A
    • 14-16 AWG: 15 A
    • 16-22 AWG: 10 A

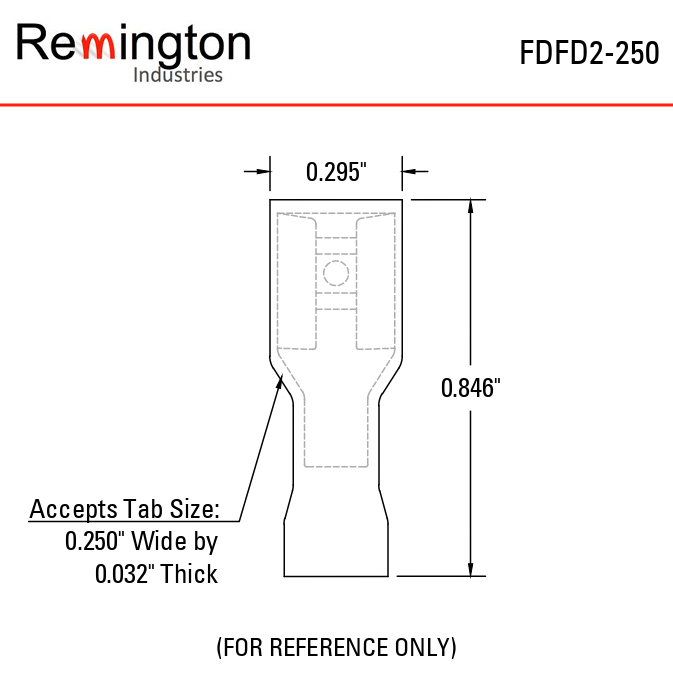

  • Dimensions:

↑ Stop your "Specifications" content here
↓ Begin to insert your "Sizes" tab content here
  • 10-12 AWG, 14-16 AWG, or 16-22 AWG wire size
  • 10 or 100 piece package quantity

↑ Stop your "Sizes" content here
