Aluminum Angle, Bar, and Rod Dimensions

Aluminum Angle, Bar, and Rod Dimensions

This page provides dimensional and specification data for aluminum angle, bar, and rod stock, with a focus on commonly used 6061 aluminum. The tables below list aluminum angle sizes, aluminum bar sizes, and aluminum rod dimensions for quick technical reference.

These aluminum size charts are commonly used by engineers, machinists, fabricators, and buyers to verify stock dimensions, compare available sizes, and reference material specifications for manufacturing, machining, and prototyping applications.

Aluminum Angle Sizes Aluminum Bar Sizes Aluminum Rod Dimensions Aluminum 6061 Data Sheet PDF

Aluminum Angle Sizes and Dimensions

This section provides detailed aluminum angle bar sizes and aluminum angle dimensions for standard mill stock. Aluminum angle is typically specified by leg size × leg size × thickness, with available lengths shown in the table.

Aluminum Angle Available Dimensions

Width x Height x Thickness
3⁄4" x 3⁄4" x 1⁄8" (9.53 x 9.53 x 3.18 mm)
1" x 1" x 1⁄8" (25.40 x 25.40 x 3.18 mm)
1" x 1" x 1⁄4" (25.40 x 25.40 x 6.35 mm)
1 1⁄2" x 1 1⁄2" x 1⁄8" (38.10 x 38.10 x 3.18 mm)
1 1⁄2" x 1 1⁄2" x 1⁄4" (38.10 x 38.10 x 6.35 mm)
2" x 2" x 1⁄8" (50.80 x 50.80 x 3.18 mm)
Length
1" (25.40 mm)
2" (50.80 mm)
4" (101.60 mm)
6" (152.40 mm)
8" (203.20 mm)
10" (254.00 mm)
12" (304.80 mm)
24" (609.60 mm)
36" (914.40 mm)
48" (1219.20 mm)

The aluminum angle sizes chart above is commonly referenced when:

  • Selecting structural or framing components
  • Verifying fit and clearance in fabricated assemblies
  • Comparing available aluminum angle specifications

This aluminum angle sizes chart represents standard angle aluminum bar stock manufactured from 6061 aluminum.

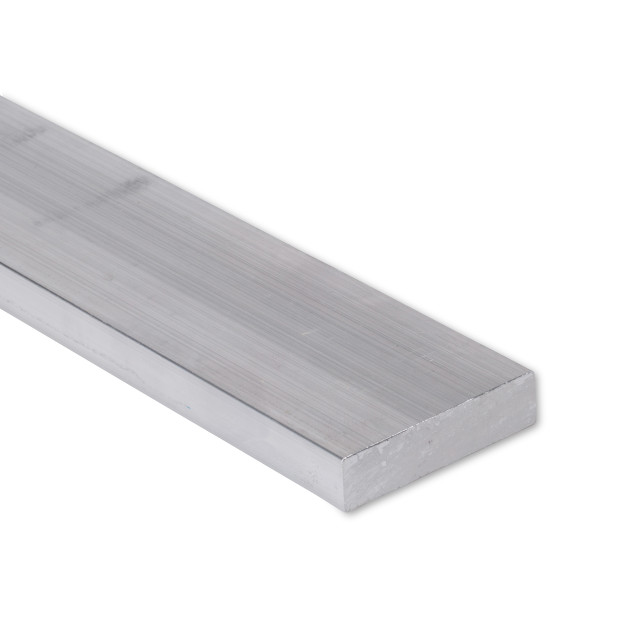

Aluminum Bar Sizes

The following chart lists standard aluminum bar sizes, including flat bar dimensions commonly used in machining and fabrication. Aluminum bar stock is typically specified by width × thickness, with multiple length options available.

Aluminum Flat Bar Available Dimensions

Thickness
1⁄8" (3.18 mm)
1⁄4" (6.35 mm)
3⁄8" (9.53 mm)
1⁄2" (12.70 mm)
5⁄8" (15.88 mm)
3⁄4" (19.05 mm)
1" (25.40 mm)
Width
1⁄2" (12.70 mm)
1" (25.40 mm)
1 1⁄2" (38.10 mm)
2" (50.80 mm)
2 1⁄2" (63.50 mm)
3" (76.20 mm)
4" (101.60 mm)
6" (152.40 mm)
8" (203.20 mm)
Length
1" (25.40 mm)
2" (50.80 mm)
4" (101.60 mm)
6" (152.40 mm)
8" (203.20 mm)
10" (254.00 mm)
12" (304.80 mm)
24" (609.60 mm)
36" (914.40 mm)
48" (1219.20 mm)

An aluminum bar size chart is often used to:

  • Compare flat bar dimensions
  • Confirm stock availability prior to machining
  • Reference material sizes for design, quoting, and prototyping

All bar dimensions shown are for 6061 aluminum bar stock.

Aluminum Rod Dimensions

This section provides aluminum rod dimensions for round aluminum rod stock. Aluminum rod is specified by nominal diameter, with available lengths listed in the table.

Aluminum Round Rod Available Dimensions

Diameter
1⁄4" (6.35 mm)
5⁄16" (7.94 mm)
3⁄8" (9.53 mm)
1⁄2" (12.70 mm)
5⁄8" (15.88 mm)
3⁄4" (19.05 mm)
7⁄8" (22.23 mm)
1" (25.40 mm)
1 1⁄8" (28.58 mm)
1 1⁄4" (31.75 mm)
1 3⁄8" (34.93 mm)
1 1⁄2" (38.10 mm)
1 3⁄4" (44.45 mm)
2" (50.80 mm)
Length
1" (25.40 mm)
2" (50.80 mm)
4" (101.60 mm)
6" (152.40 mm)
8" (203.20 mm)
10" (254.00 mm)
12" (304.80 mm)
24" (609.60 mm)
36" (914.40 mm)
48" (1219.20 mm)

An aluminum rod dimensions chart is commonly referenced for:

  • Turning and CNC machining
  • Fabrication and prototyping
  • Shafting, spacers, and precision components

The data above applies to 6061 aluminum rods and represents standard mill dimensions.

Aluminum Product Categories

Once you’ve identified the appropriate aluminium product and dimensions, explore our available aluminum products below.

Aluminum Angle

Aluminum Flat Bar

Aluminum Rod

Aluminum 6061 Specifications

The aluminum products listed on this page are manufactured from 6061 aluminum, a widely used, general-purpose aluminum alloy known for its balance of strength, machinability, and corrosion resistance.

Aluminum 6061 specifications typically include:

  • Good strength-to-weight ratio
  • Excellent machinability
  • Good weldability
  • Resistance to corrosion in many environments

Common tempers for 6061 aluminum include T6511 (bars and rods) and T6 (angles). This material meets ASTM B221 specifications for extruded aluminum products and is frequently referenced using an aluminum 6061 data sheet.

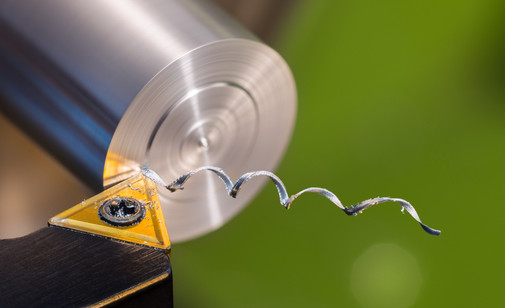

An aluminum rod is milled in a cnc machine.

Download the Aluminum 6061 Data Sheet (PDF)

For users who prefer a printable or offline reference, the complete Aluminum Bar, Rod, and Angle Data Sheet PDF(Opens in a new tab) is available to download.

The aluminum 6061 data sheet PDF includes:

  • Aluminum angle sizes
  • Aluminum bar sizes
  • Aluminum rod dimensions
  • Material and specification information

Download the Aluminum Bar, Rod, and Angle Data Sheet PDF (Opens in a new tab)

Using These Aluminum Dimensions as Reference Data

The aluminum dimensions and specifications provided on this page are intended for general reference and informational use. Actual tolerances, availability, and suitability may vary depending on application requirements.

Always verify dimensions, confirm material specifications, and consult applicable standards before selecting aluminum bar, rod, or angle stock for a specific application.
